EN01

The ENCLAD^TM EN01 engineered rainscreen support system is designed for visible/discrete fixing of thin smooth cladding materials.

The support system can accommodate various insulation thickness in the rainscreen cavity to assist with meeting H1-energy efficiency requirements.

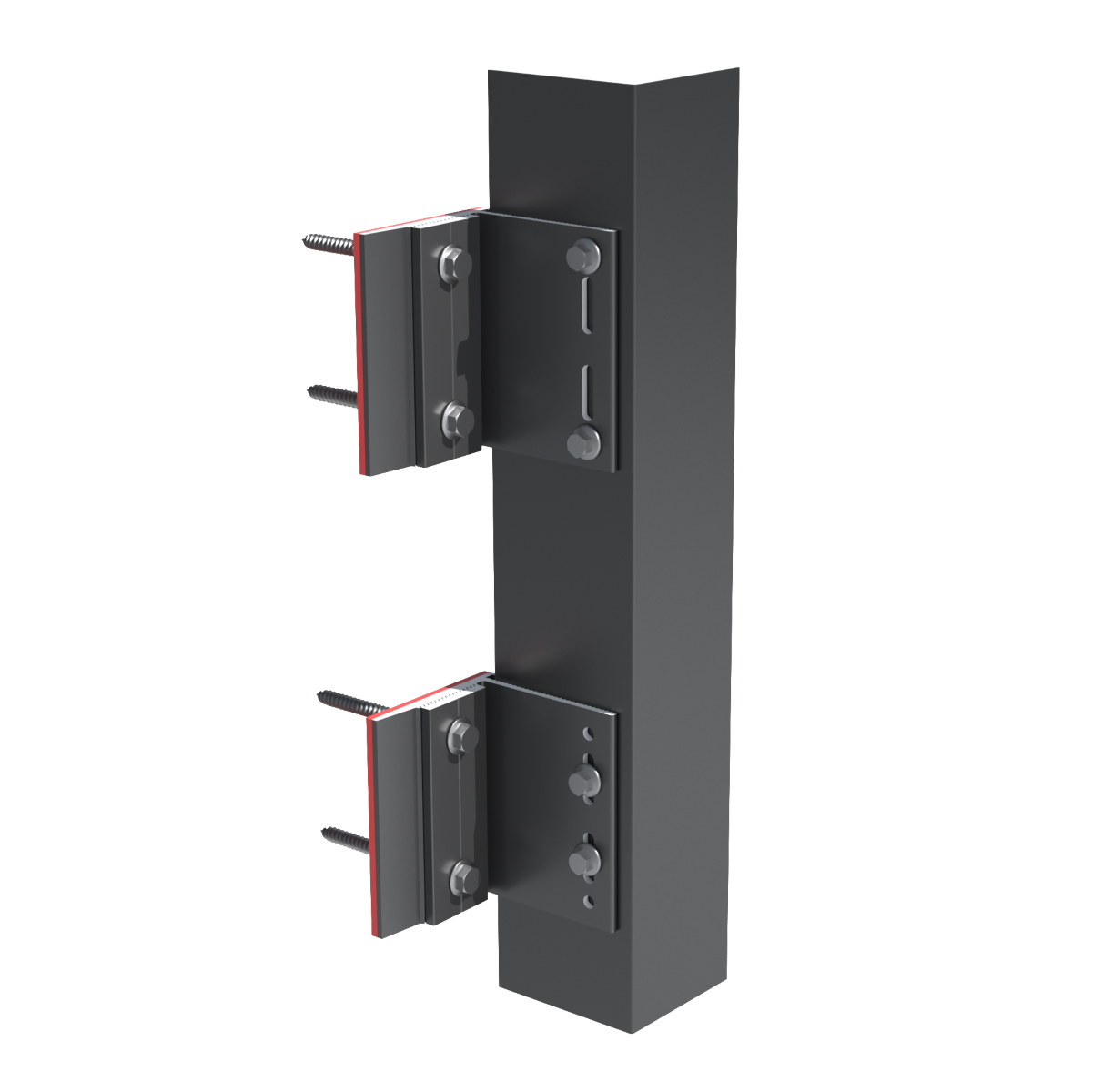

EN01 consists of an engineered grip slide bracket which allows the vertical cladding support rail to be adjusted in and out so the system can easily accommodate building tolerances without the need for packers.

The support system can be used in conjunction with different rainscreen cladding types inclusive of:

• High Pressure Laminates (HPL)
• Solid/Perforated metal cladding
• Extruded aluminium planks

System Features:

The EN01 engineered rainscreen support system is extruded from 3mm solid aluminium as a minimum to meet (B1) Structure compliance.

The extrusions are Duralloy powdercoated for enhanced (B2) Durability compliance.

• Non-combustible.
• Accommodates insulation/firestops within cladding cavity zone.
• Adjusts to take up building tolerance & plumb level.
• Suitable for horizontal and vertical cladding panel orientation.
• Suitable for visible or secret fixed cladding panels.
• Mechanically fixed cladding panels for safety.

Cladding Types & Cavity Widths

*1 To suit 50mm insulation; *2 To suit 75mm insulation; *3 To suit 100mm insulation
