EN02

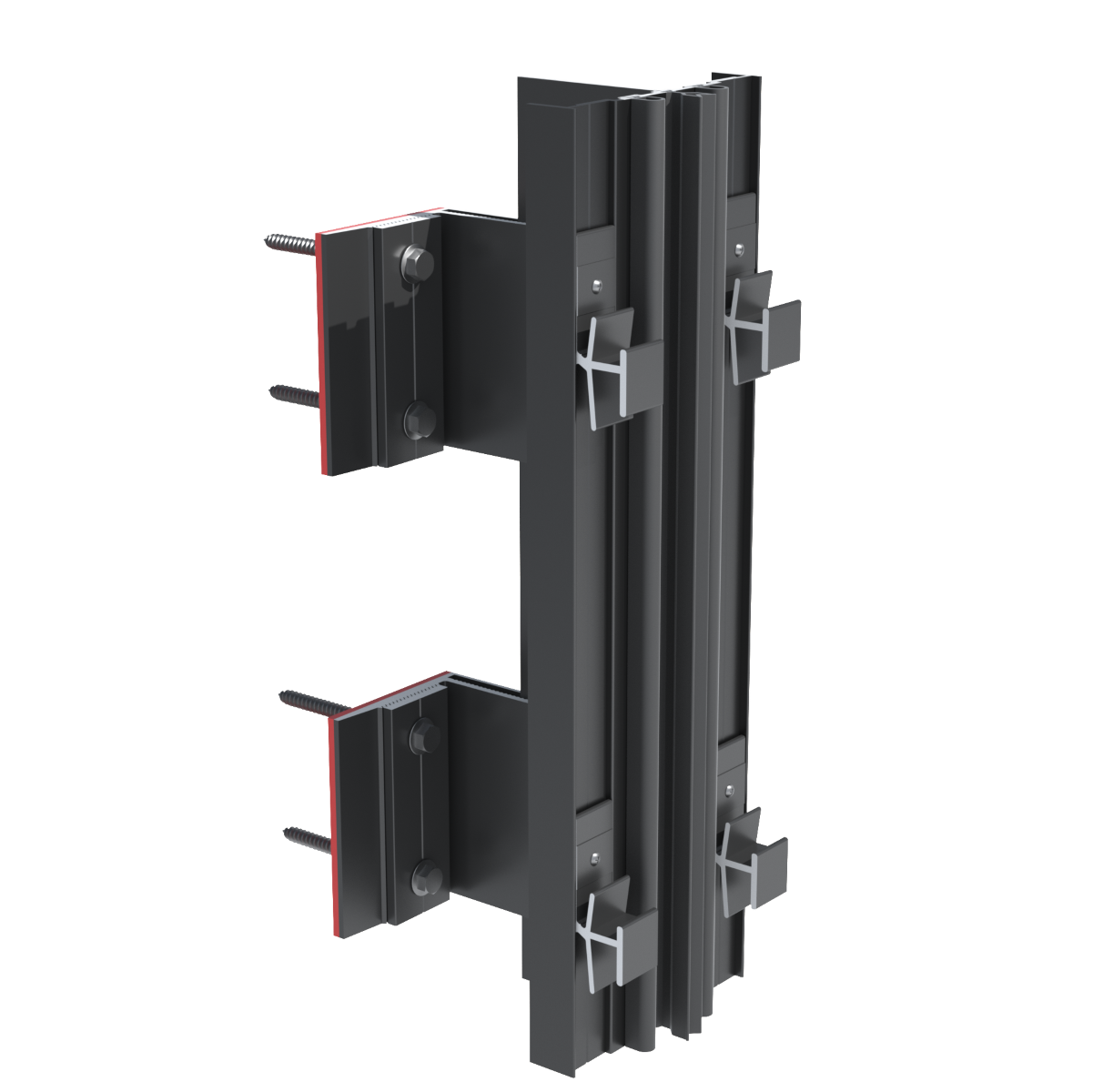

The ENCLADTM EN02 engineered rainscreen support system is designed for discrete fixing of Terracotta cladding materials in horizontal orientation.

The support system can accommodate various insulation thickness in the rainscreen cavity to assist with meeting H1-energy efficiency requirements.

EN02 consists of an engineered grip slide bracket which allows the vertical cladding support rail to be adjusted in and out so the system can easily accommodate building tolerances without the need for packers.

The support system can be used in conjunction with different rainscreen cladding types inclusive of:

  • Terracotta tiles in horizontal orientation

System Features:

 The EN02 engineered rainscreen support system is extruded from 3mm solid aluminium as a minimum to meet (B1) Structure compliance.

The extrusions are Duralloy powdercoated for enhanced (B2) Durability compliance.

  • Non-combustible.
  • Accommodates insulation/firestops within cladding cavity zone.
  • Adjusts to take up building tolerance & plumb level.
  • Discrete fixing method.

Cladding Types & Cavity Widths

CLADDING TYPE

EN02 SUPPORT SYSTEM

(Cavity Widths)

Extruded Aluminium Plank (Horizontally Laid)

N/A

Extruded Aluminium Plank

(Vertically Laid)

N/A

Solid Aluminium



N/A



Alucolux®

Perforated Aluminium

Stainless Steel

Copper

Solid Zinc

High Pressure Laminate (HPL) Facades

N/A

Terracotta Tiles / Planks

(Horizontally Laid)

82mm*1

105mm*2

Terracotta Tiles / Planks

(Vertically Laid)

N/A

Porcelain Tiles

N/A

GRC

N/A



*1 To suit 50mm insulation; *2 To suit 75mm insulation; *3 To suit 100mm insulation

SPECIFICATION

4216IR Insite Rainscreen Cladding Support Systems


Cladding Types
