The ENCLADTM EN06 engineered rainscreen support system is designed to support large GRC cladding panels.

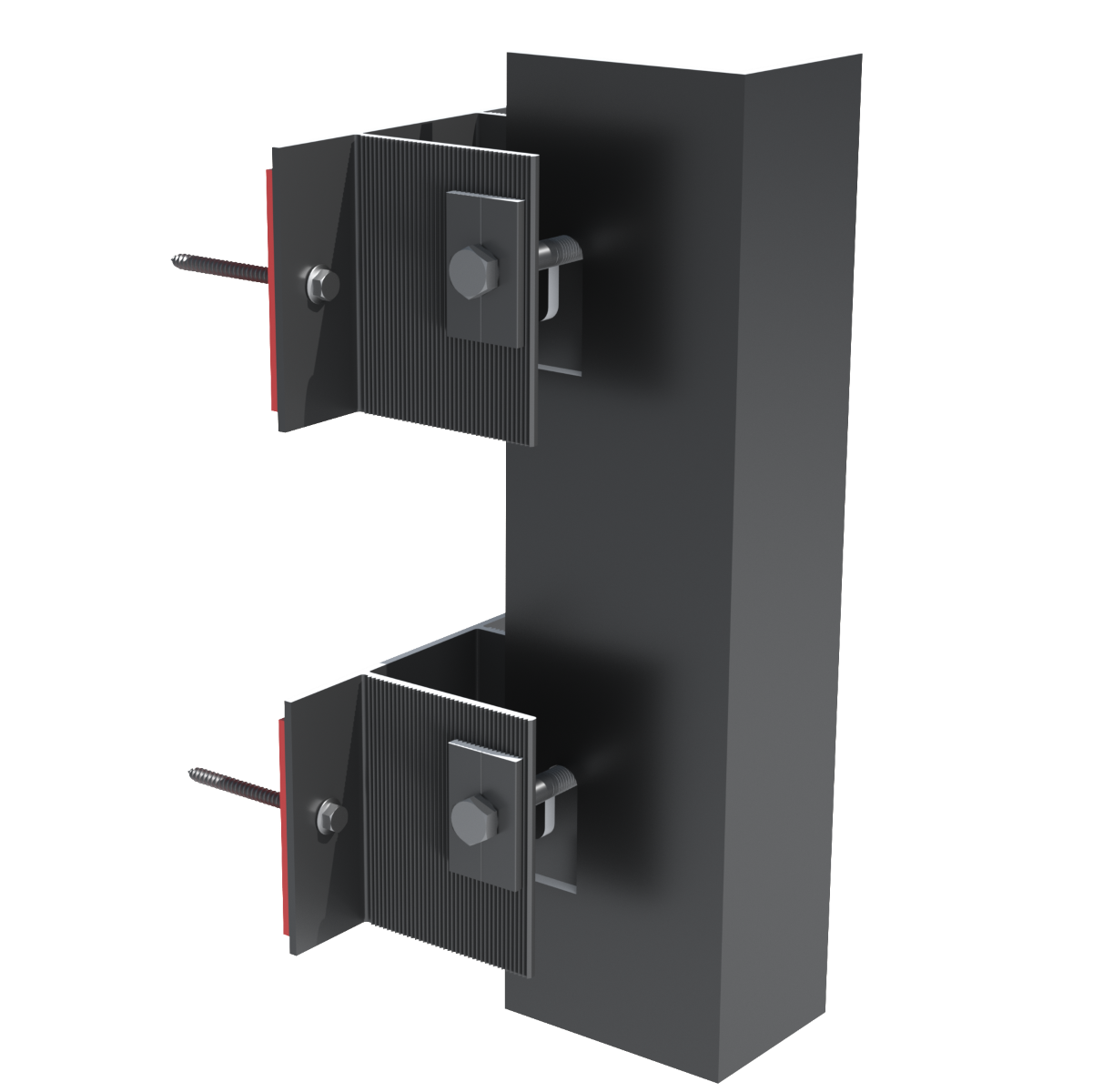

EN06 consists of an engineered pin bracket. The GRC panels can be prefabricated offsite with a rail fixed to the rear of the GRC panel which is hooked on site for speed of installation.
This is a precision design system where the vertical support rail is made to size to reduce the cavity zone as much as possible.
System Features:
The EN06 engineered rainscreen support system is extruded from 3mm solid aluminium as a minimum to meet (B1) Structure compliance.
The extrusions are Duralloy powdercoated for enhanced (B2) Durability compliance.
|
CLADDING TYPE |
EN06 SUPPORT SYSTEM (Cavity Widths) |
|
Extruded Aluminium Plank (Horizontally Laid) |
Contact Insite Facades |
|
Extruded Aluminium Plank (Vertically Laid) |
Contact Insite Facades |
|
Solid Aluminium |
Contact Insite Facades
|
|
Alucolux® |
|
|
Perforated Aluminium |
|
|
Stainless Steel |
|
|
Copper |
|
|
Solid Zinc |
|
|
High Pressure Laminate (HPL) Facades |
Contact Insite Facades |
|
Terracotta Tiles / Planks (Horizontally Laid) |
Contact Insite Facades |
|
Terracotta Tiles / Planks (Vertically Laid) |
Contact Insite Facades |
|
Porcelain Tiles |
Contact Insite Facades |
|
GRC |
115-140mm |
*1 To suit 50mm insulation; *2 To suit 75mm insulation; *3 To suit 100mm insulation
